“BRUTE STEEL SLITTER is a professional coil processing equipment manufacturer in China. It can provide customers with high-quality metal slitting machine equipment and metal cut-to-length shearing line equipment, which are suitable for common metal coil processing such as iron plates, aluminum coils, copper coils, galvanized steel coils, silicon steel coils, etc., and can also meet the processing of large hot-rolled coils of 6-25MM.
Recently, BRUTE STEEL SLITTER completed a steel coil slitting machine project for Indonesian customers suitable for 6MM thick metal coils. From the confirmation of metal slitting machine requirements, design drawings, raw material procurement, to the casting and assembly of metal slitting machine parts, BRUTE STEEL SLITTER provides one-stop service for Indonesian customers.”
BRUTE STEEL SLITTER Heavy Gauge Coil Slitting Line is specially designed for processing large metal raw materials, meeting the needs of metal coils from 2mm to 16mm, such as strip steel, stainless steel, galvanized sheet, etc. Compared with thin and medium-thick material slitting machines, heavy-duty metal slitting machines have higher tool strength, equipment rigidity and power configuration to meet the needs of metal slitting of thick plates.
Core components of thick plate slitting machine
1. Unwinding system
The thick plate slitting machine equipment uses a hydraulic loading trolley to carry and transport heavy metal coils. The coil is accurately positioned to the unwinding machine position through a hydraulic lifting device to ensure that the center of the coil is aligned with the axis of the equipment. Unwinding machines usually use a cantilever structure, which fixes the inner diameter of the coil by expanding the cone head to achieve stable unwinding and prevent deformation of heavy coils.
2. Leveling machine
It consists of multiple groups of carbide rollers arranged in an alternating manner up and down. It eliminates the internal stress of the coil by flattening to ensure the flatness of the material. Thick plate leveling machines usually use a 9-roller structure with a pressure of hundreds of tons
3. Pinching and leveling and plate head shear
It includes hydraulic or pneumatic pinching wheels, coupled with a stepless speed regulation motor drive to achieve uniform material feeding; the plate head shear is used to cut off the irregular part of the coil head to ensure a flush cut.

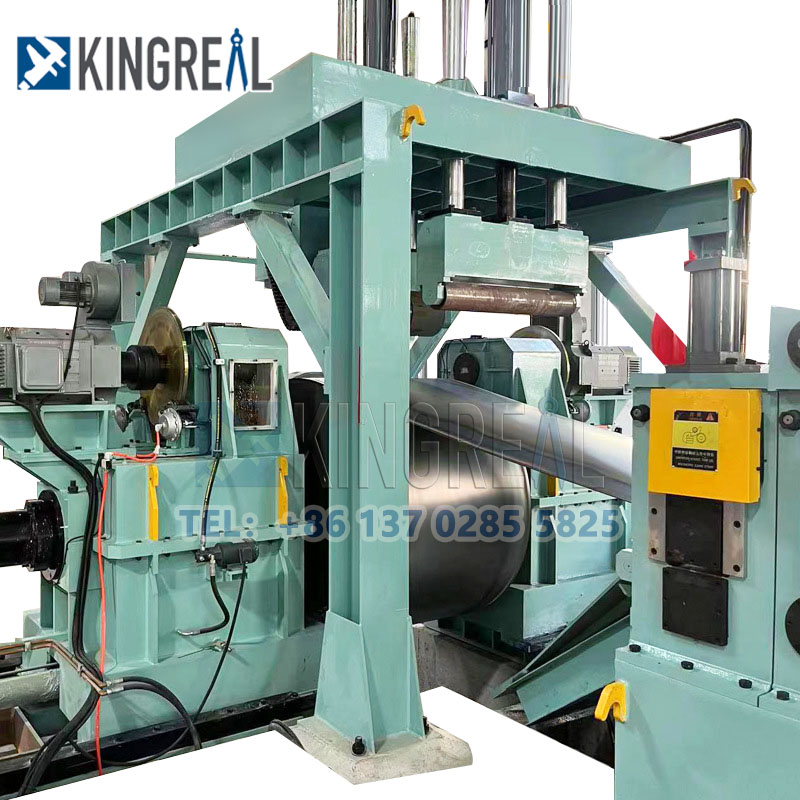

4. Slitting machine
The blade shaft of the thick plate slitting machine is made of 40Cr forged material with a diameter of more than φ120mm, and the surface is high-frequency quenched to ensure high rigidity and wear resistance, and the longitudinal runout accuracy is ≤0.03mm.
The carbide disc blade of the tool adjusts the slitting width through a precision spacer to support the high torque requirements when shearing thick plates.
5. Hydraulic tension station
The tension is adjusted through closed-loop servo control or magnetic powder clutch to avoid loose or overlapping belts during the winding process of the thick plate slitting machine, and the tension fluctuation can be controlled within ±2%

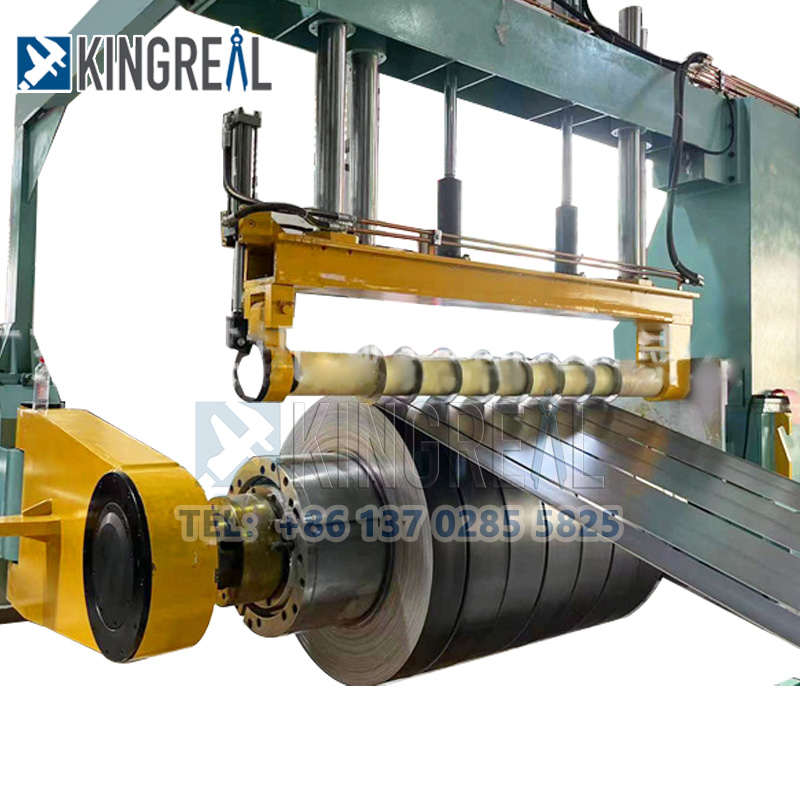

The winding machine adopts a hydraulic jaw or jaw winding structure, equipped with a conical expansion and contraction reel, which is suitable for finished narrow strip rolls with different inner diameters. Some models are equipped with multi-station winding to support continuous production.
 |
 |

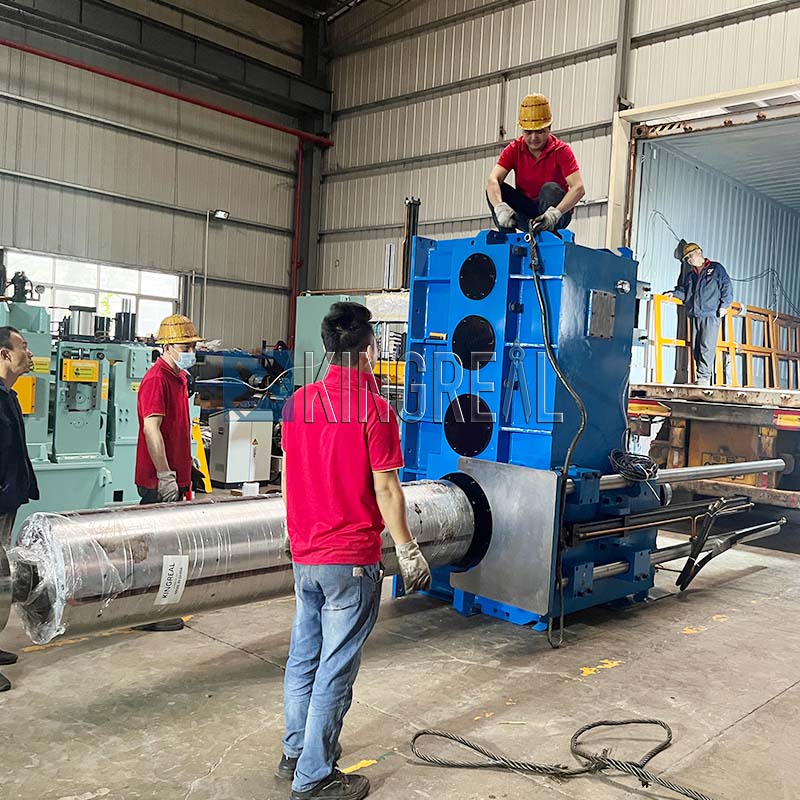

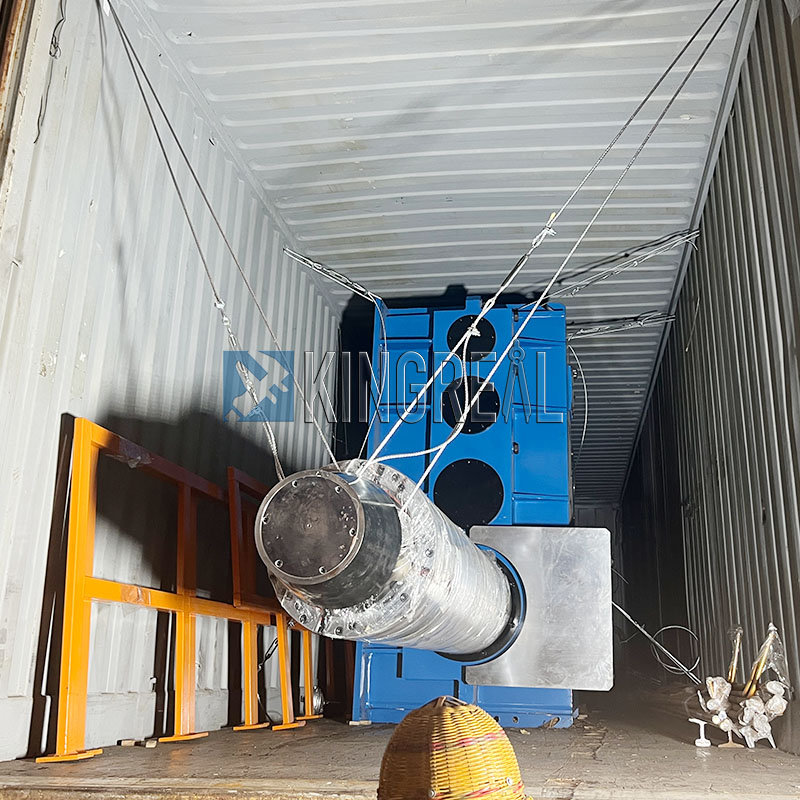

BRUTE STEEL SLITTER successfully helped Indonesian customers complete the one-stop service of design, manufacturing and transportation of heavy gauge slitting machine. After the heavy gauge slitting machine equipment is manufactured in the factory, it will be tested in the factory without load. Before starting the heavy gauge slitting machine, lubricate all bearings and slide rails (SAE-10 grade oil is recommended), run it at 10% rated speed for 30 minutes, and monitor whether the main motor current and hydraulic station pressure are normal. Simulate the material threading path, verify the synchronization and coordination of the transition bridge and the loop pit, prevent the material from running off or scratching during operation, and observe the radial run-out (≤0.1mm) of the conical expansion and contraction reel during the continuous winding test to avoid overlapping or loose winding.
Next, we will provide customers with local heavy gauge slitting machine equipment after-sales installation and operation guidance according to their actual needs. BRUTE STEEL SLITTER insists on providing customers with full-process after-sales service, 24-hour online after-sales technical guidance and local installation and operation guidance. As of 2025, BRUTE STEEL SLITTER has helped customers in Saudi Arabia, Russia, Italy, Turkey, UAE, Indonesia, Mexico and Vietnam to complete equipment after-sales service, and has been widely praised by customers.
 |
 |
When choosing coil processing equipment, customers often need to evaluate the supplier's manufacturing capabilities, equipment quality level, production input requirements, and after-sales service guarantees. BRUTE STEEL SLITTER has been engaged in the design and manufacturing of coil processing equipment for more than 20 years. It has been continuously studying suitable coil processing design solutions for customers to meet the processing needs of different customers. In the field of metal slitting machines, there are many different solutions for customers to choose from, including:
Different coil thicknesses:
Heavy Gauge Steel Coil Slitting Line
Light Gauge Metal Slitting Machine
Different raw materials:
Stainless Steel Coil Slitting Machine
BRUTESTEEL SLITTER supports high-customization design services and provides a full range of solutions for metal slitting machines. Welcome to contact us.
