BRUTE Sheet Metal Slitting Machine is design for slit different rolls of different materials and sizes into customer specified widths before rewinding. As a professional coil process equipment supplier in China, BRUTE can custom design and produce according to customer's, welcome to contact us.
How To Manufacturing The Sheet Metal Slitting Machine?
What Is The Details Production Process Of Sheet Metal Slitter Line

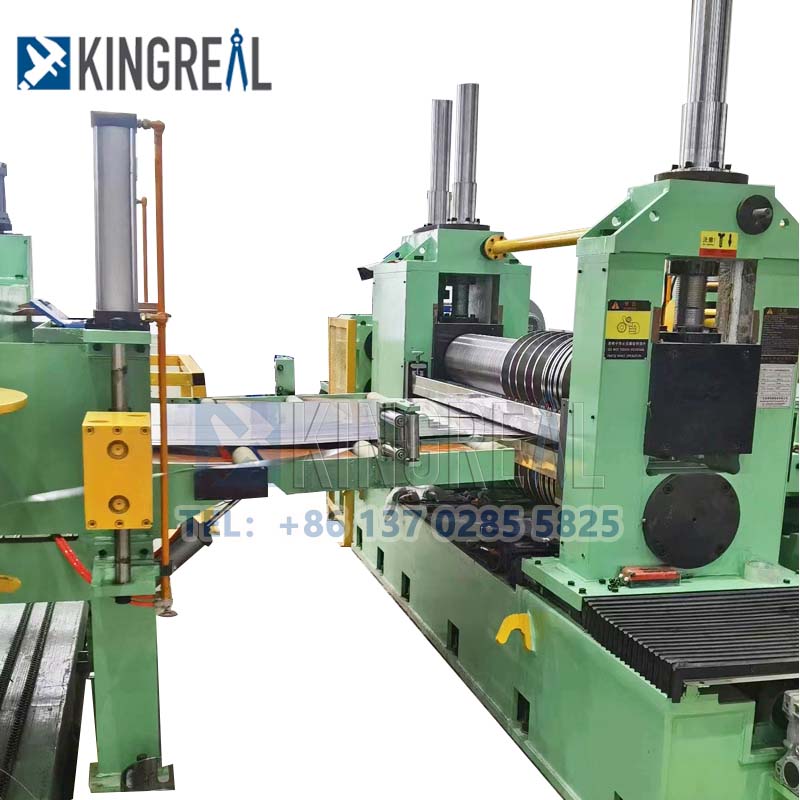

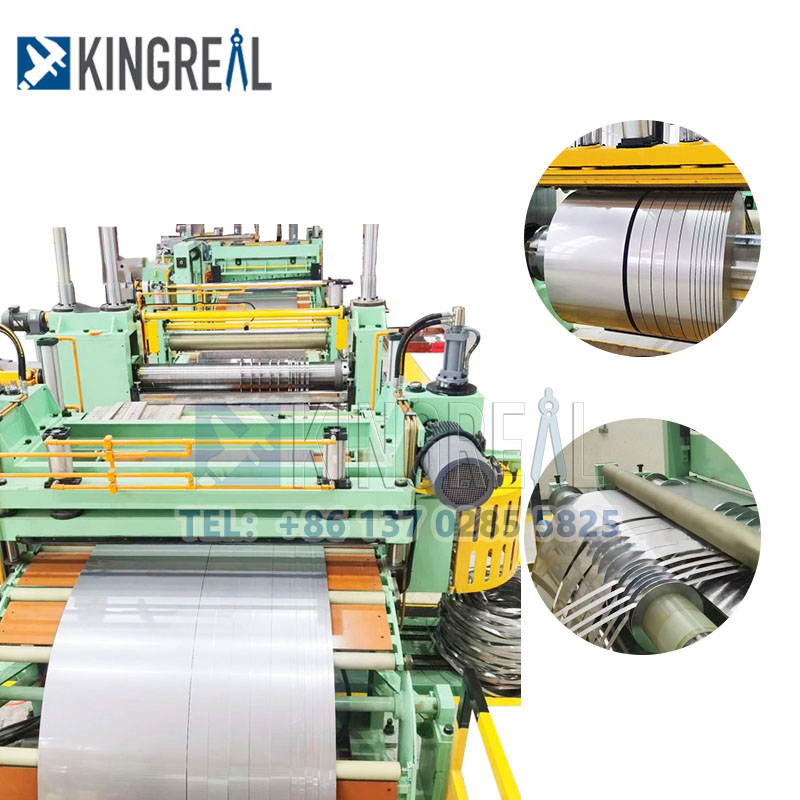

Sheet Metal Coil Slitting Machine Description
BRUTE offers Sheet Metal Coil Slitting Machine, which is used to slit and rewind coils of different metal materials according to processing needs. The metal slitting machine mainly consists of decoiler, leveling, feeding, slitting machine, edge trimming and rewinding.
Depending on the customer's different metal coil slitting needs, BRUTE can provide the following common production solutions, and can customize and design new solutions for our customers:
- (0.3-3MM)*1600MM Metal Coil Slitting Machine
- 4-20MM Heavy Duty Coil Slitting Machine
- Double Slitter Head Slitting Machine
- Simple Coil Slitting Machine
- Belt Tension Slitter Rewinding Machine
Components Of Standard Soil Slitting Machine:
Guiding Device
Decoiler Tension Device
Cutting Head Shears
Threading Table
Loop Bridge
Guide Rollers
Transfer Rollers
Inlet Clamping Device
Constant Tension Decoiler Device
Scrap Cart
Rewind
Technical Specification:
|
Raw Material Date |
|
|
Material |
stainless steel sheet, aluminum sheet, galvanized sheet, iron sheet, color coated sheet |
|
Plate thickness |
0.15~3.0 mm |
|
Sheet width |
500~1600mm |
|
Coil inner diameter |
Φ508mm/Φ610mm |
|
Coil outer diameter |
≤Φ1600mm |
|
Device Date |
|
|
Number of coil strip |
up to 35 |
|
Slitting speed |
Max 220M/Min |
|
Total power approx |
220KW |
(All the above data is for reference only, the actual need to provide customers with drawings and related needs, BRUTE engineers will design custom)
Advantage Of Slitting Line Machine:
The ratio of finished board width to board thickness is small, generally less than 10
Strip thickness : 1.0mm - 6.0mm
High precision finished tolerances: 3mm±0.1mm, 6mm±0.2mm
Incoming material width ：300mm
1. The metal slitting machine realizes continuous slitting of metal coils through high-speed rotating cutters and automatic feeding systems, which is 3-5 times more efficient than traditional manual cutting.
2. The metal slitting machine equipment supports the processing of coils of different thicknesses and materials, and dynamically adjusts the tension through hydraulic expansion mechanisms and torque motors to prevent material deformation or deviation.
3. The metal slitting machine can meet the raw material processing needs of different industries, and is widely used in the fields of automobile manufacturing, steel structure and door and window frame construction industries, electronics and packaging of precision components, etc., to meet the customized needs of different industries.

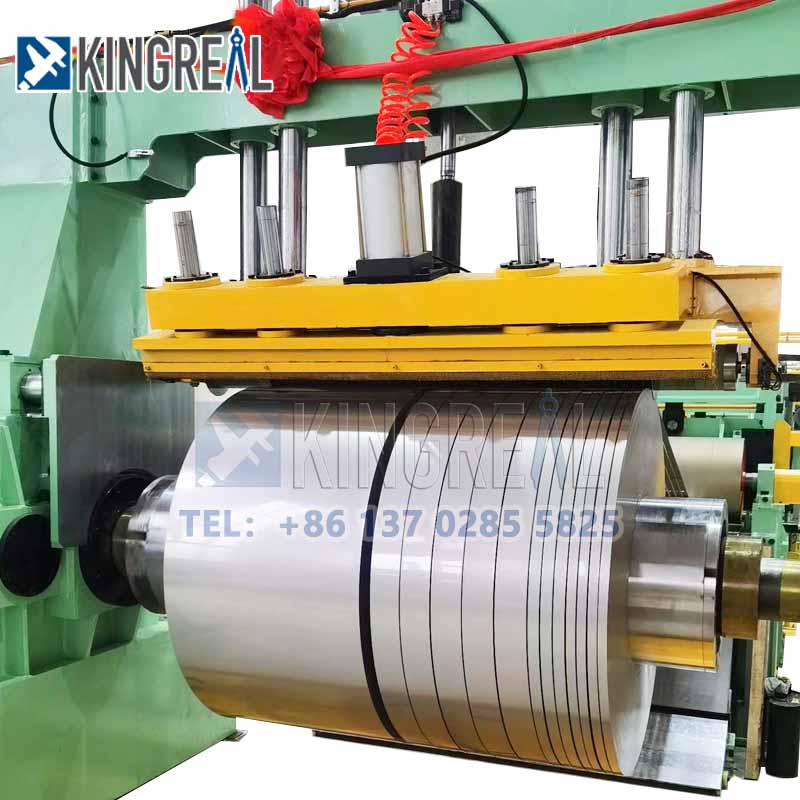

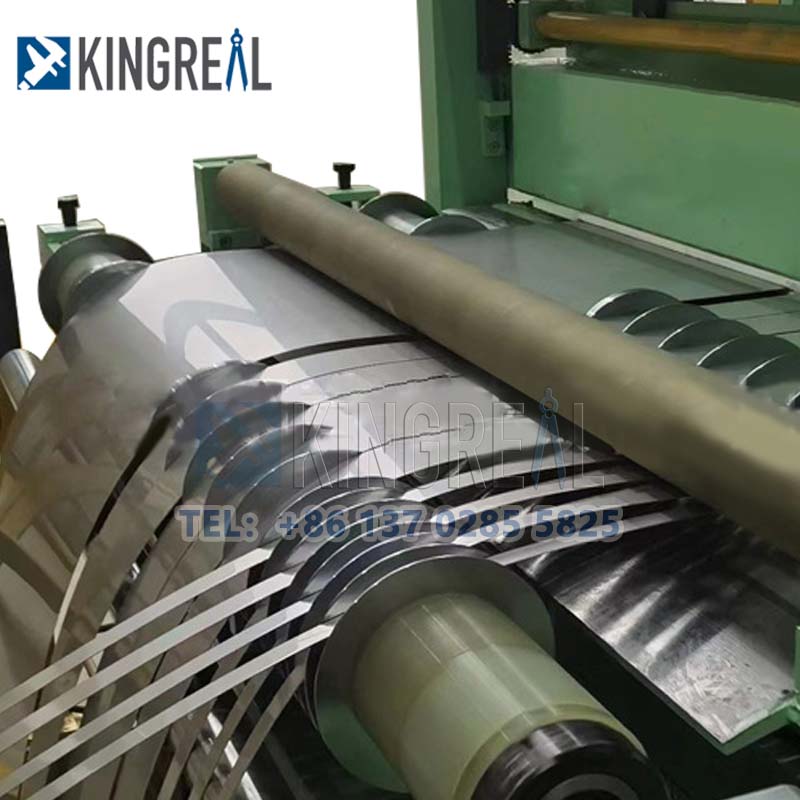

Final Metal Coil Strip Display
Detail Of Sheet Metal Coil Slitting Machine:
Use a crane to store the rolls on storage racks, and a loading trolley to manually tighten the rolls on the uncoiler reel.
To achieve the expansion of the coiling drum, a spinning hydraulic oil cylinder is required.
High precision tolerance for slit width and straightness.
For more convenient functioning, use a vertical type scrap recoiler.
Hydraulic type with top separators and unloading device for convenience.
About us :
BRUTE can provide different steel coil slitting machine and cut to length line according to customer needing.
BRUTE has its own production plant and professional team to ensure the quality of metal coil slitting machine production
BRUTE has successfully shipped coil slitting line and custom shearing cut to length lines and other web processing equipment to countries including Russia, India, Vietnam, Turkey and the Netherlands.
